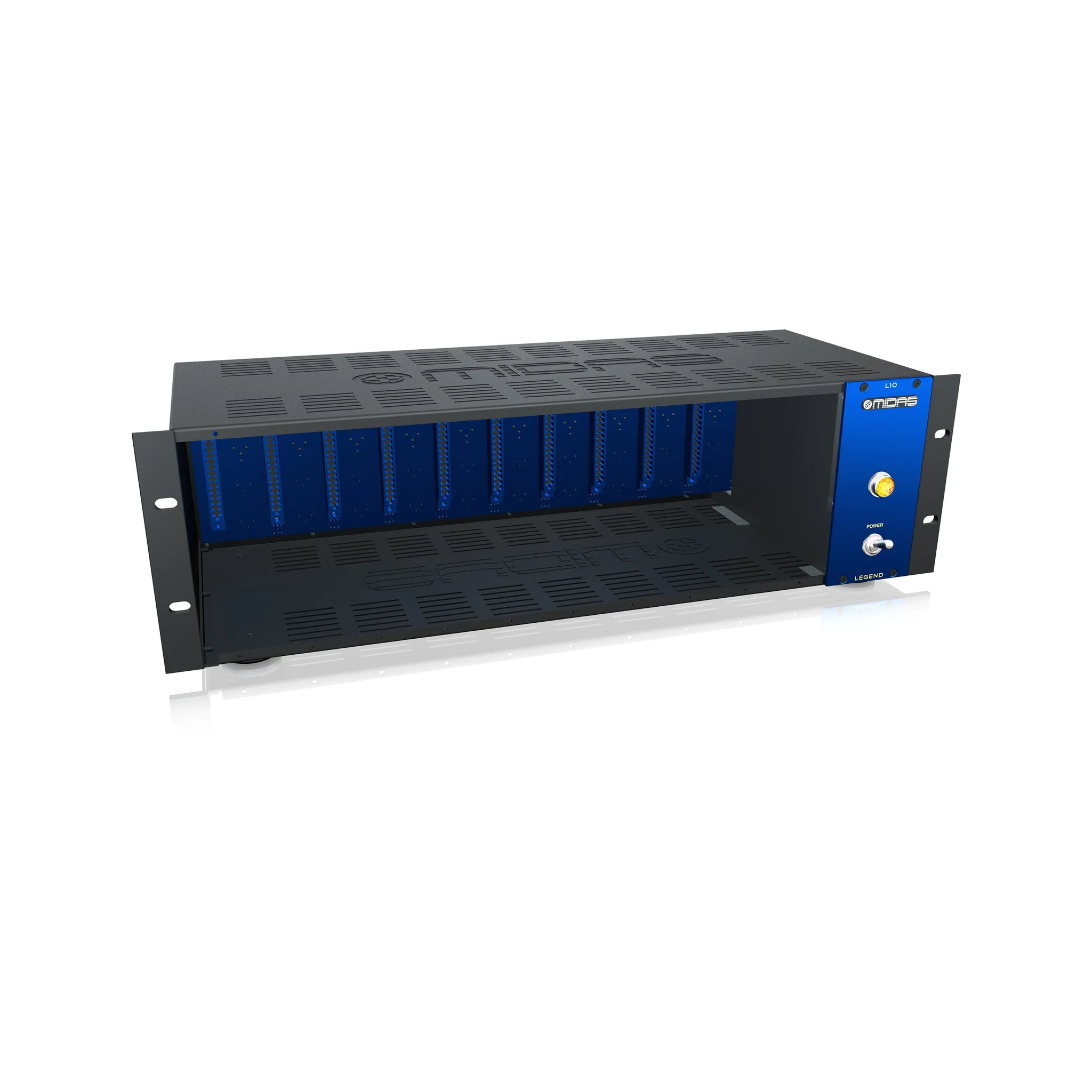

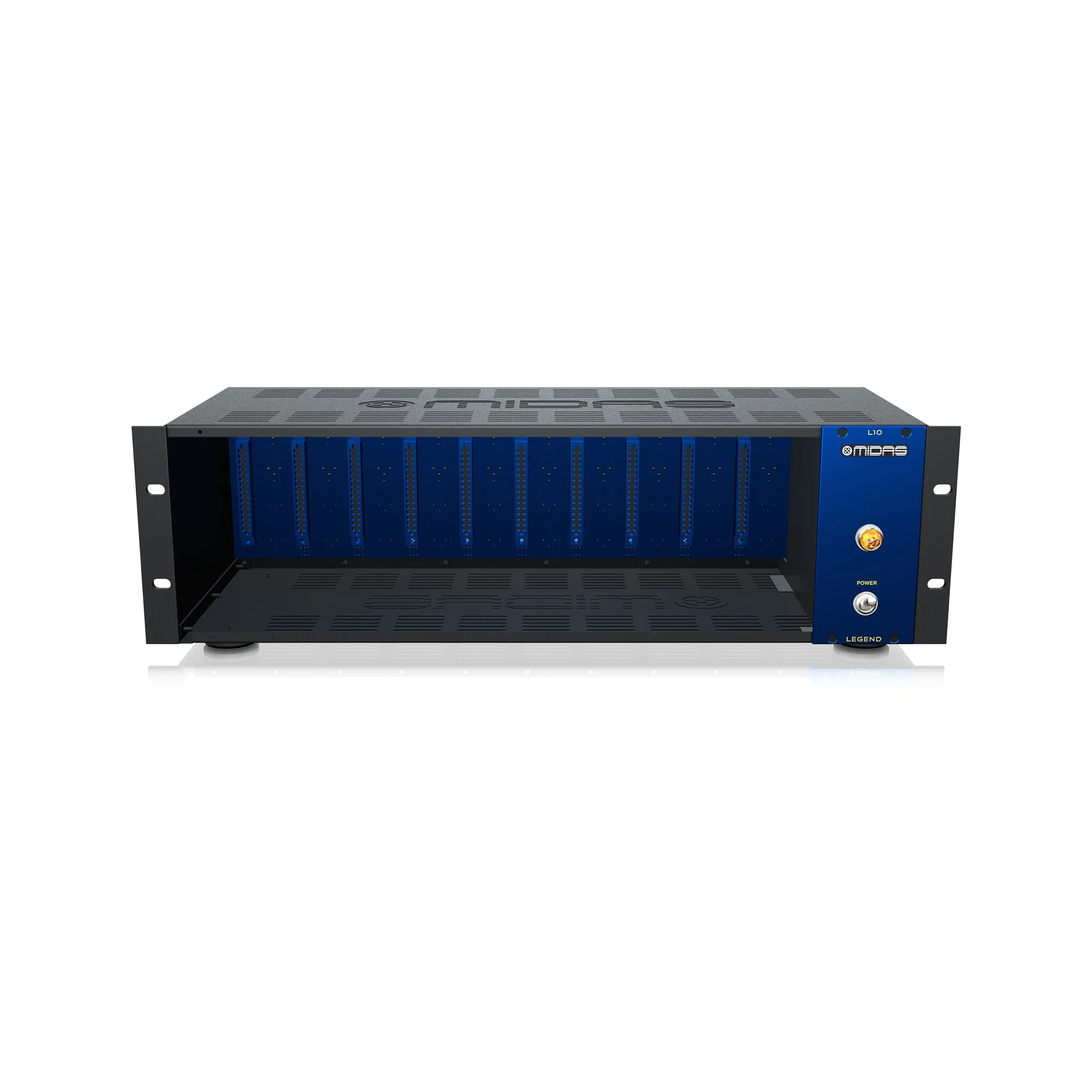

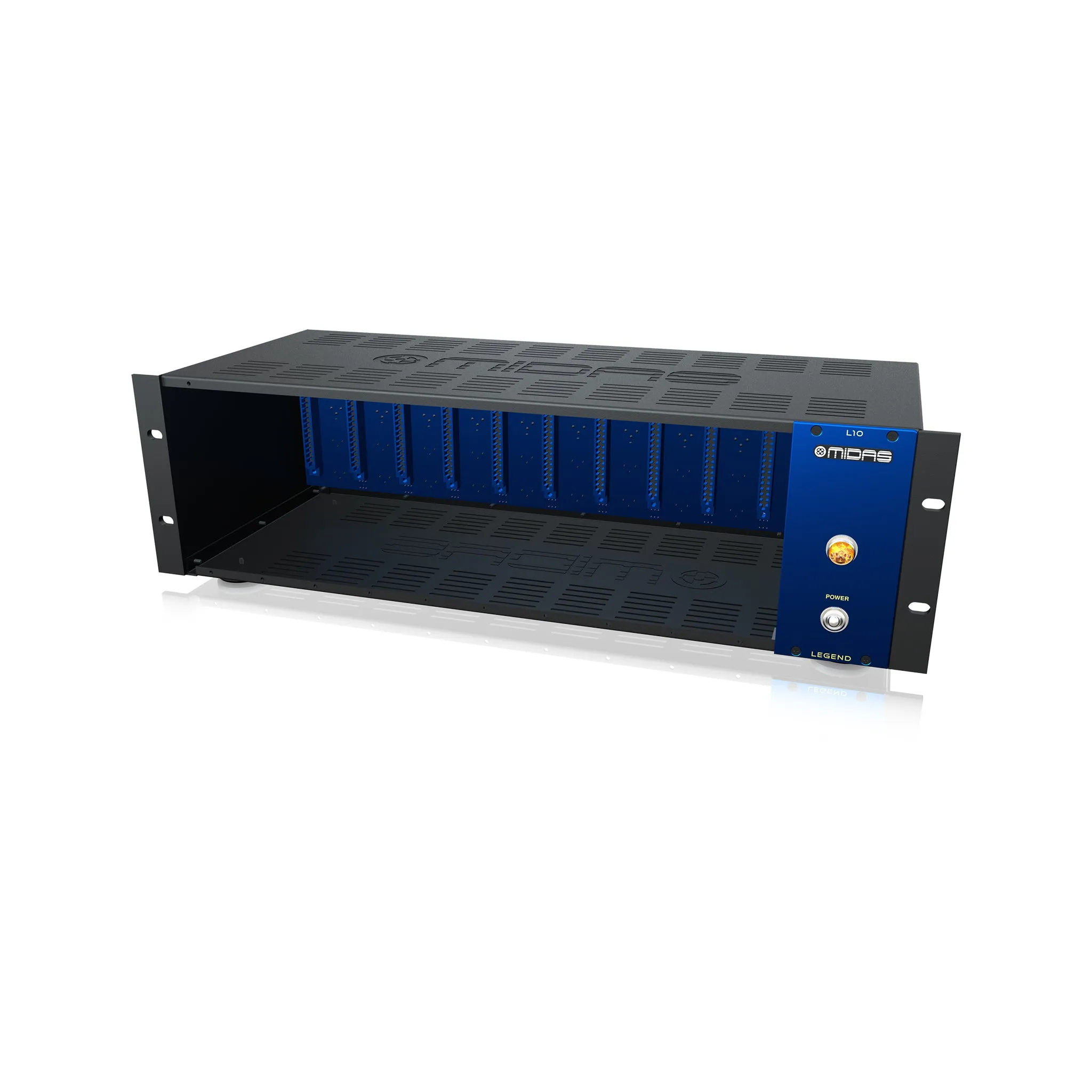

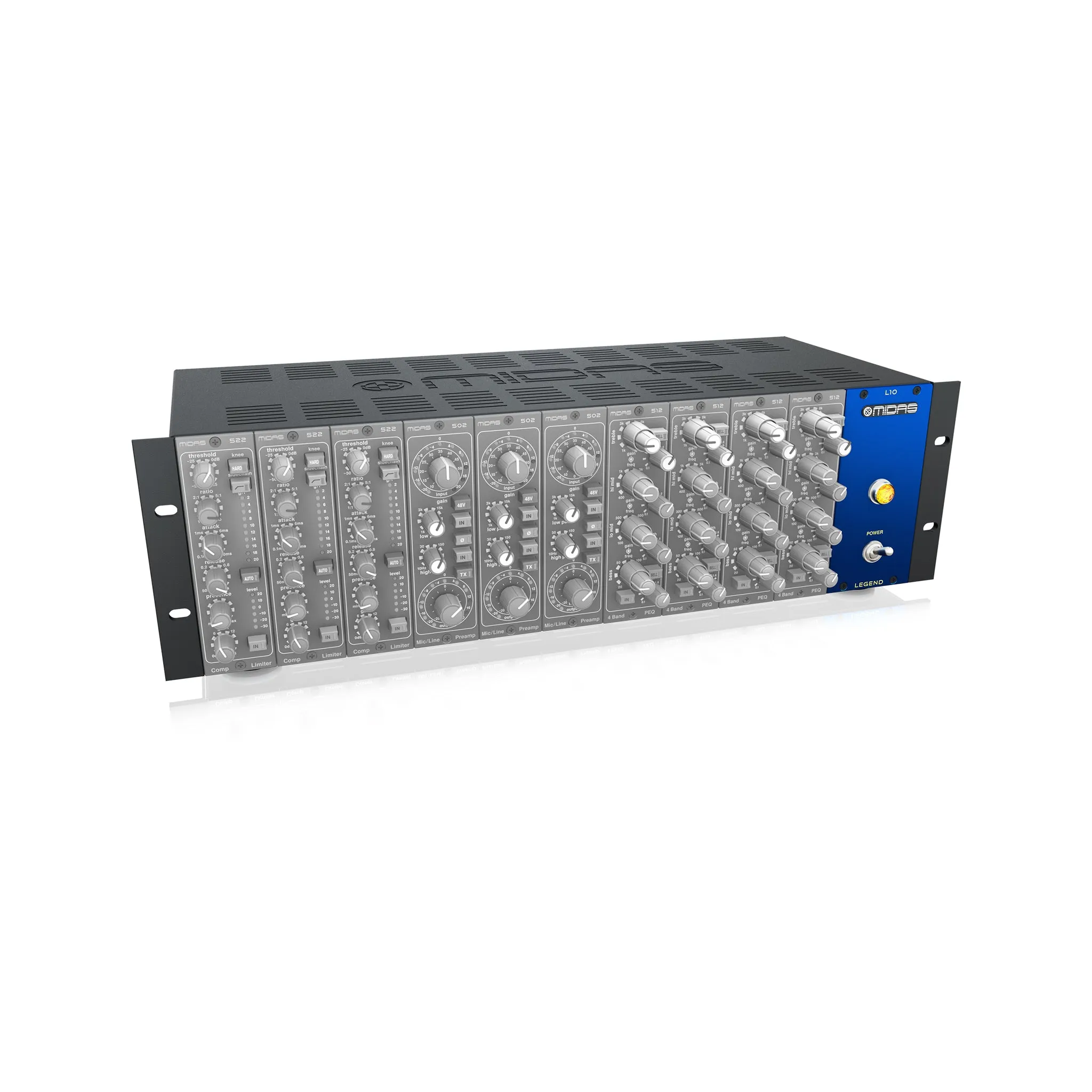

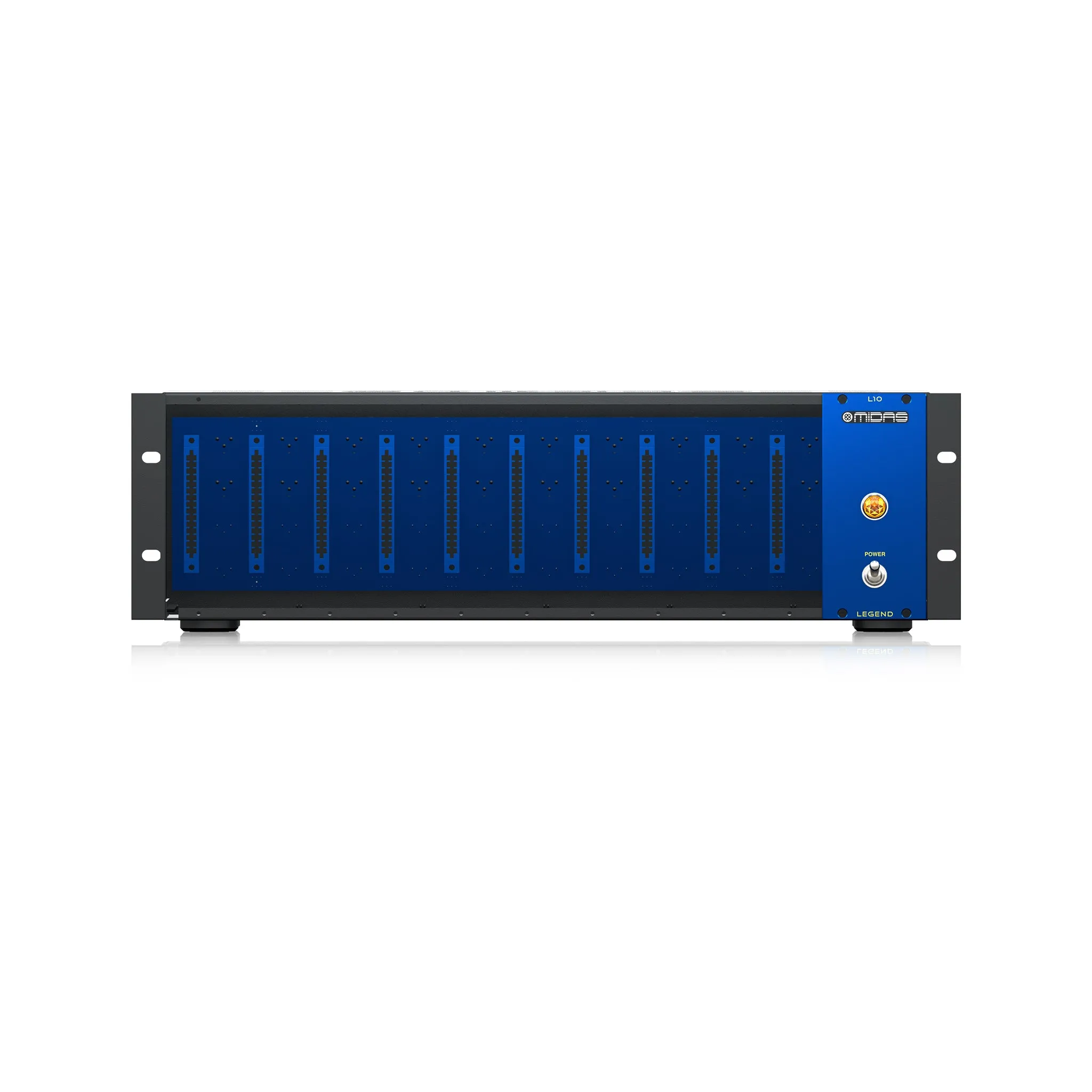

The LEGEND L10 500 Series Rackmount Chassis lets you mix and match a wide range of audio processing modules to build the ideal signal chain for any application. With space for up to 10 single-width modules, advanced audio routing for simplified cabling, and a robust auto-ranging universal switch-mode power supply, you can take your favourite modules anywhere in the world with complete confidence. Designed to accommodate all 500 series-compatible modules and plug-in cards, the L10 is the perfect companion for your MICROPHONE PREAMPLIFIER 502, COMPRESSOR LIMITER 522, PARAMETRIC EQUALISER 512, and the many other modules currently under development – as well as those from 3rd party vendors.

Features:

• 500 series rackmount chassis for 10 single-width modules
• Advanced audio routing reduces cabling complexity
• Audio output link switches provide cable-free daisy-chain connections between modules
• Compressor bus link switches enable stereo and multi-channel dynamics sidechain linking
• Rugged 3U rackmount chassis for durability in portable applications
• Earth lift switch eliminates any ground loop problems
• High power auto-ranging universal switch-mode power supply for use worldwide
• Over-specified ultra-low noise power supply output provides 3.2 A @ ±16 V and 300 mA @ 48 V

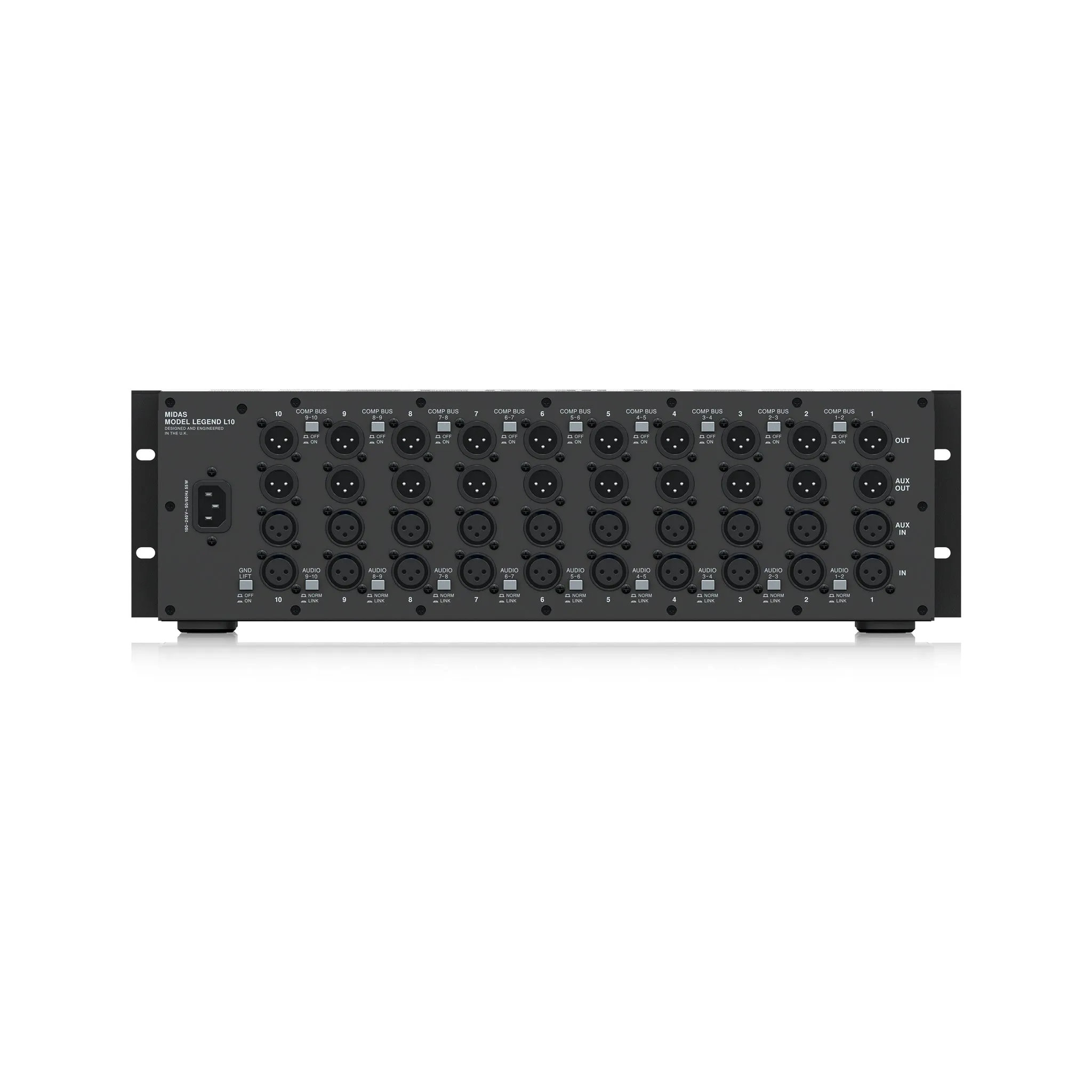

• Main and auxiliary inputs and outputs per channel on Neutrik* XLR connectors
• Premium quality components throughout for crystal-clear audiophile signal path
• Designed and engineered in the U.K.
